Event: Add to/Edit in Composite dialog

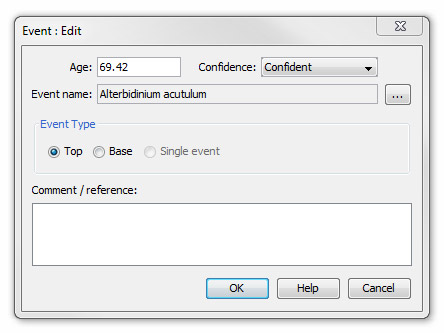

This dialog enables you to add events to composite standards and edit the events in existing composites. Open from the Composite Standard dialog.
Hint: a composite standard event consists of an event from the event dictionary, plus its age, and whether it is a top or a base event.
Enter the CSU or Age value. Select your confidence in this age. You can use Comment/reference field to record the origin of the age - e.g. a literature reference, or that it was arrived at using graphic correlation in a particular project. You could amend the comment if you decide to change the age.
Select an event by pressing the ellipsis to the right of the Event name field. This will open the Event : Select dialog
Select the appropriate Event Type to indicate whether this is to be a Top event or Base event (of paired events) or a Single event (more about events...).
Note: you cannot change a paired event into a single event and vice versa.
